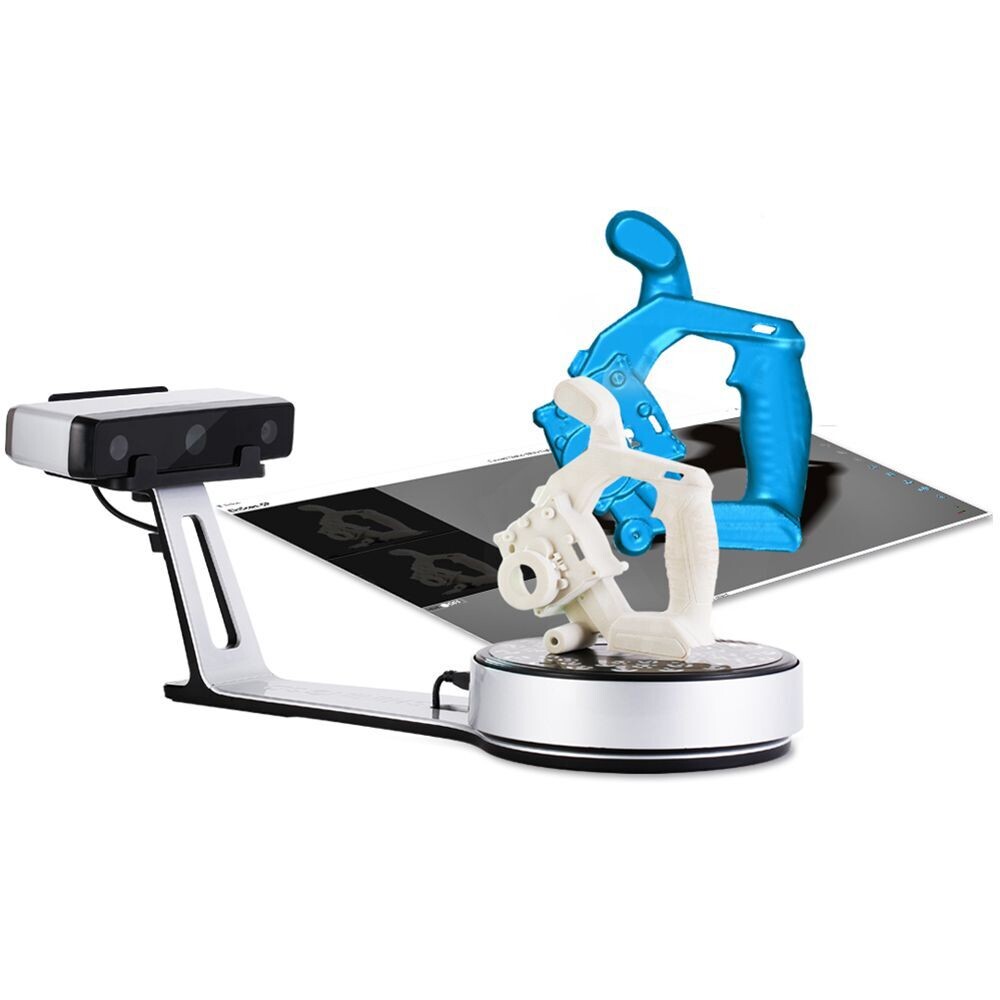

Shining 3D EinScan SP V2 3D Scanner

EinScan-SP with unique different specifications to meet most applications’ requirement.

• Multi-functional, Capture 3D Data Easier and Faster
• Dual scan modes: Auto Scan and Fixed Scan
• Wide scan range from small to large.
• Single Capture Accuracy: < 0.05 mm. Single Shot Size: 200mm x 150mm
• Scan Speed of a Single Shot < 1s and Scan Speed of One Turn < 45s
• Max Scan Volume: 1200mm x 1200mm x 1200mm for fixed scan, 200mm x 200mm x 200mm for auto scan
• Point Distance: 0.17mm - 0.2mm

A Powerful Companion for Desktop 3D Printing Applications. The Next Innovative Desktop 3D Scanner. Easiest 3D Scanning Experience for Non-technical Users.

EinScan Shinning Your Ideas:

• Education: primary, middle and high school, K12 education, training on 3D design
• Design & Art: high quality 3D design, 3D printing applications, reverse engineering, etc
• Digital Industry: animation, CG, VR & AR
• Archiving and Sharing: 3D digital archiving, data sharing

Easier Operation, Faster Scanning, User Friendliness and Enhanced Efficiency.

• Time needed for a single scan: EinScan-SP 4s
• Time needed for a 360-degree scan under auto-scan mode: EinScan-SP 1mins

Fine Details, Every Scan Generates a High-Quality 3D Data File

• Structured light 3D scanning technology, great power of reconstruction the real geometry of the object with fine detail.

Compatible for Communicating with 3D Printers

• Auto meshing to watertight 3D data, providing high quality 3D data for 3D printer, which can be printedby 3D printer directly.
• Provide API access service for any brand 3D printers.

Automatic Software

• Automatic calibration with no rigid set-up required;
• One-click scanning;
• Auto alignment and fusion for direct mesh generation;
• Multiple ways of alignment available in EinScan-SP: markers, turntable markers, feature and manual
• alignments;
• EinScan-SP provides a higher accuracy of 0.05 mm for a single scan
