EinScan SE V2 - Desktop 3D Scanner
SKU s3d-einscan-se2
PKR 599,000
Super Saver
was PKR 650,000
Save PKR 51,000
Affordable Automatic Desktop 3D Scanner with 0.1mm accuracy
Out of stock, available for Pre-Order 45 ~ 65 Days
1
Save this product for later
Customer reviews
No reviews yet. Only signed-in customers who bought this product can leave reviews. To leave a review, sign in

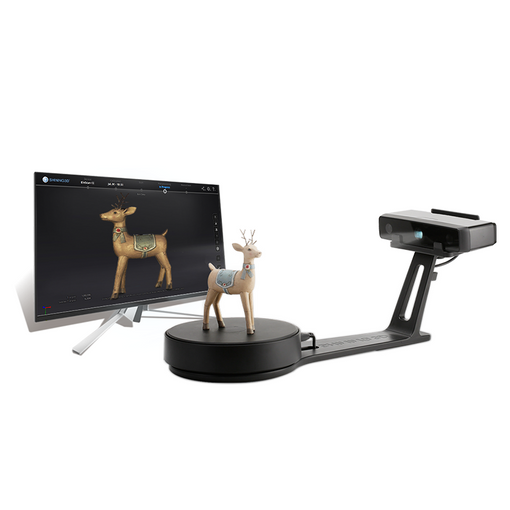

EinScan SE V2 - Desktop 3D Scanner
Product Details
Brand: SHINING3D
EinScan-SE V2 3D Scanner, a powerful companion for different user types which can produce High Quality Data EinScan-SE V2 generates every scan have a high-quality 3D data. Wider 3D Scanning Range EinScan-SE V2 Minimum Scan Volume: 30mm *30mm *30mm EinScan-SE V2 Maximum Scan Volume: 700mm *7000mm *700mm Extensive Post-processing Functions Software of EinScan-SE has the functions
EinScan-SE V2 3D Scanner, a powerful companion for educators and individuals

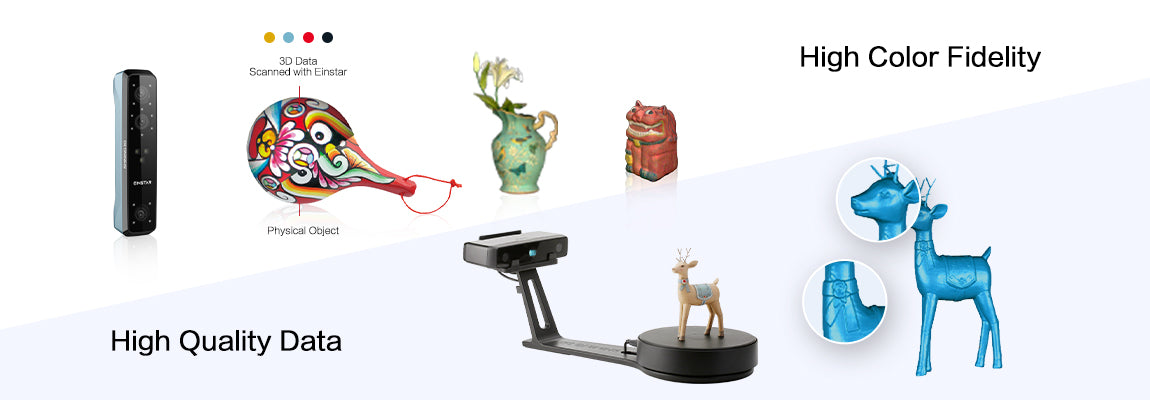

High Quality Data
EinScan-SE V2 generates every scan have a high-quality 3D data.
Wider 3D Scanning Range
EinScan-SE V2 Minimum Scan Volume: 30mm *30mm *30mm
EinScan-SE V2 Maximum Scan Volume: 700mm *7000mm *700mm
Extensive Post-processing Functions
Software of EinScan-SE has the functions of filling holes, smoothing and sharpening, and can also readjust the data coordinates in the post-processing process to provide more perfect 3D data for subsequent applications.
Fine Details
EinScan-SE V2 reconstruct the real geometry of the object with fine details.

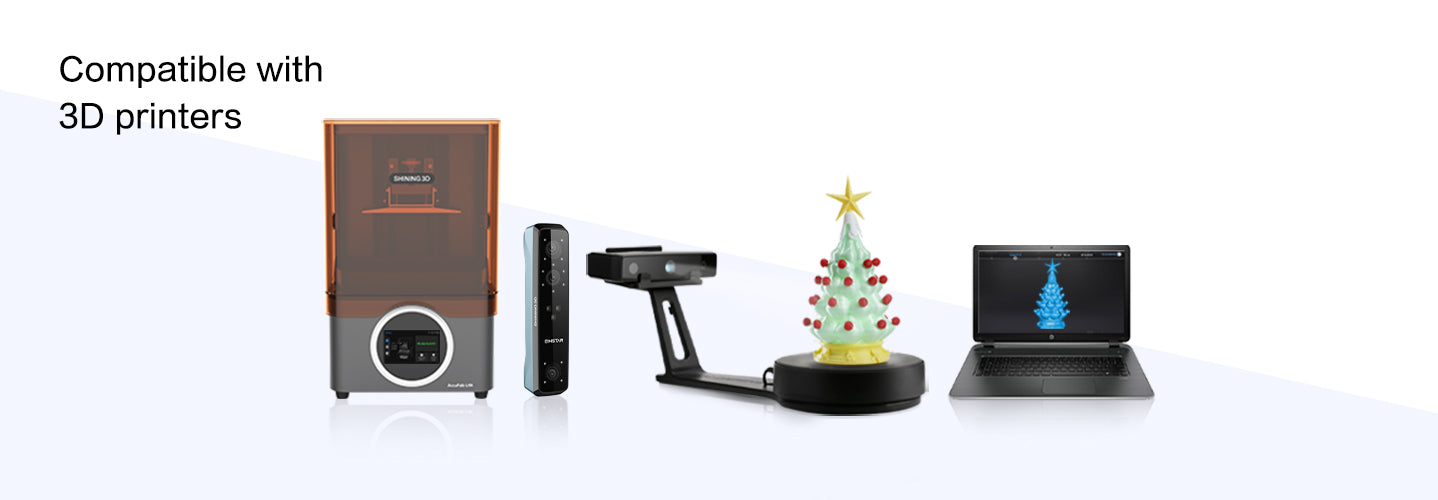

Compatible with 3D Printers
Auto meshing to watertight 3D data.
Seamlessly connect to 3D printers.
Provide API access service for any brand 3D printers.

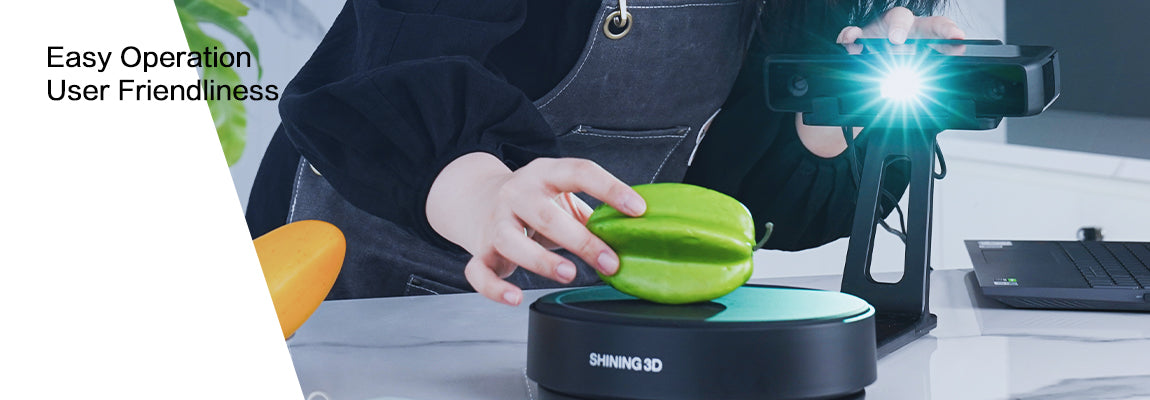

Streamlined User Experience
EinScan-SE V2 support One-click scanning and automatic calibration with no rigid set-up required, 1 second for a single scan, 45 seconds for a 360-degree scan under auto scan mode.
Einstar only need one USB cable for data transmission and power. Clear and elegant workflow for scanning and post processing. Easy to setup, plug and play.
SPECIFICATIONS:
|
Shot Accuracy |
≤0.1 mm |
| Minimum Scan Volume | 30 × 30 × 30 mm |
| Maximum Scan Volume | Fixed Scan with Turntable: 200×200×200 mm, Fixed Scan without Turntable: 700×700×700 mm |
| Single Scan Range | 200×150 mm |
| Point Distance | 0.17 mm ~ 0.2 mm |
| Camera Resolution | 1.3 Mega Pixels |
| Light Source | White LED |
| Computer Requirements (Required) | USB:1 ×USB 2.0 or 3.0; OS: Win7, 8 or 10 (64 bit); Graphic Card: Nvidia series; Graphic memory: ＞1G; CPU: Dual-core i5 or higher; Memory: ＞8G |
| Computer Requirements (Recommended) | Graphics card: NVIDIA GTX660 or higher； Graphics memory: ＞2 G; CPU: Dual Core I5 or higher; Memory: ＞16 G |
| Scanner Body Weight | 2.5 kg |
| Power Supply | 40 W |
| Input Voltage | DC：12 V, 3.33 A |
| Packing Dimensions | 570×210×210 mm |
| Load Capacity of Turntable | 5 kg |
