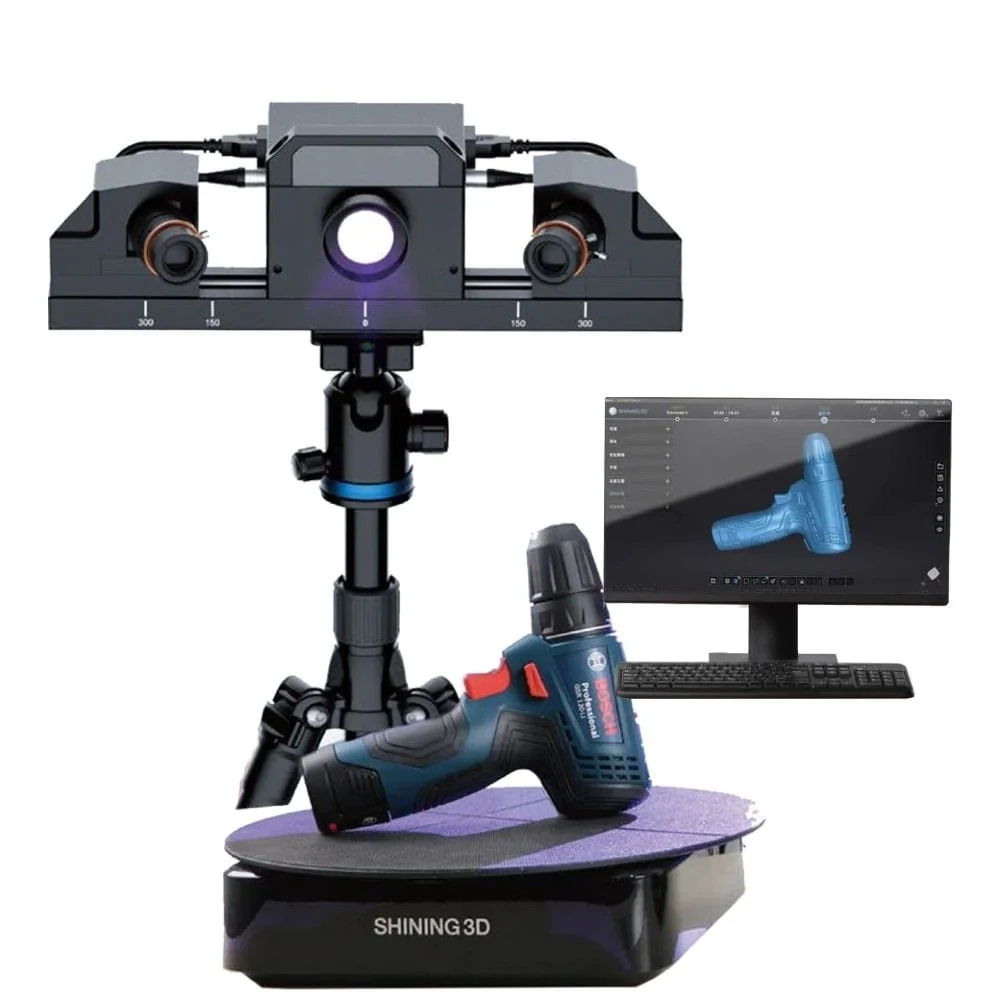

Shining 3D TranScan-C 3D Scanner

· Adjustable scanning range to meet various object scanning needs.

· Smoothly shift between 3 levels of resolution in one project to create great detail with high efficiency.

· 12 MP professional color cameras provide rich and detailed color textured 3D model.

The slide-rail design enables an easy switch of the scanning range between 150 mm x 96 mm and 300 mm x 190 mm meeting the needs of scanning objects of different sizes effectively.

The Multi-Resolution Fusion Algorithm allows a mixture of 3 levels of resolution of high, medium or low in one project for complex scanning tasks, which highly improves efficiency without duplication of work.

Two 12 MP professional color cameras are installed to capture a detailed 24-bit color map, replicating the authentic color of the physical object. Transcan C is the ideal solution to capture color 3D data for virtual display.

The compact design scanner produces high accuracy of 0.035 mm at its inner position, and of 0.05 mm at its outer position. These results are valuable for many applications for measurement.

The minimum point distance can reach 0.0375 mm (resolution) to reproduce fine details on the surface in its inner position of 150 mm x 96 mm.

The scanning process is fully automatic with the turntable. Combined with the scanning software's stitching algorithm, this ensures the efficient acquisition of 3D data without manual intervention.

The software interface guides the user through a simple operation process while providing powerful tools for the hustle-free optimization of the scan results.
