ELEGOO OrangeStorm Giga - Gigantic Volume Fast 3D Printer

Name: ELEGOO OrangeStorm Giga - XXL 3D Printer in Pakistan
Brand: ELEGOO
SKU: ele-osgiga
Price: 1585990.0 PKR
Availability: PreOrder

SKU ele-osgiga

PKR 1,585,990

Super Saver

was ~~PKR 1,850,000~~

Save PKR 264,010

800x800x1000mm XXXL High Speed 3D Printer on Linear Rails. - EXPECTED DELIVERY IN AUG 2024

Out of stock, available for Pre-Order 45 ~ 65 Days

Quantity:

Save this product for later

Customer reviews

No reviews yet. Only signed-in customers who bought this product can leave reviews. To leave a review, sign in

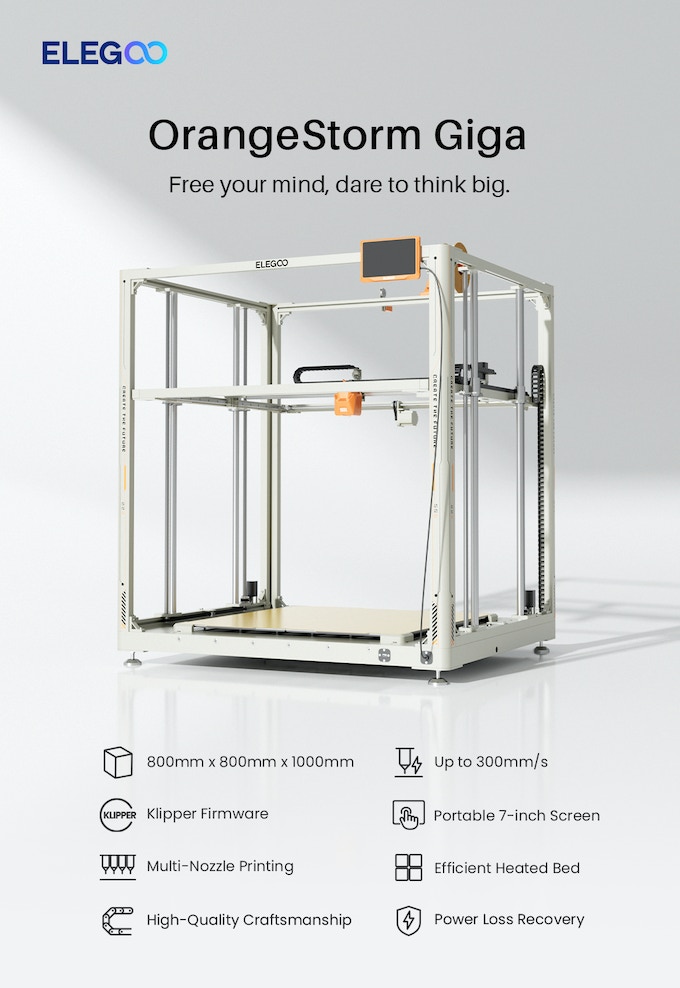

ELEGOO OrangeStorm Giga - Gigantic Volume Fast 3D Printer

Product Details

Brand: ELEGOO

ELEGOO OrangeStorm Giga - Estimated delivery in October 2024 in Pakistan (In Transit)

"It is undoubtedly an enormous 3D printer that will make you feel excited at first glance. "

To ensure that the printing process is as exciting as the finished works, we have focused on enhancing the following features:

● Bigger & More Robust — Gigantic size, efficient heated bed, fast printing, multi-nozzle printing, upgraded 300℃ nozzle, powerful cooling fan.

● Reliable Quality — Integrated body, linear guide, thicker Z-axis rod, caterpillar cable tracks.

● Seamless User Experience — Portable 7-inch HD capacitive screen, power loss recovery.

1. Gigantic in Size

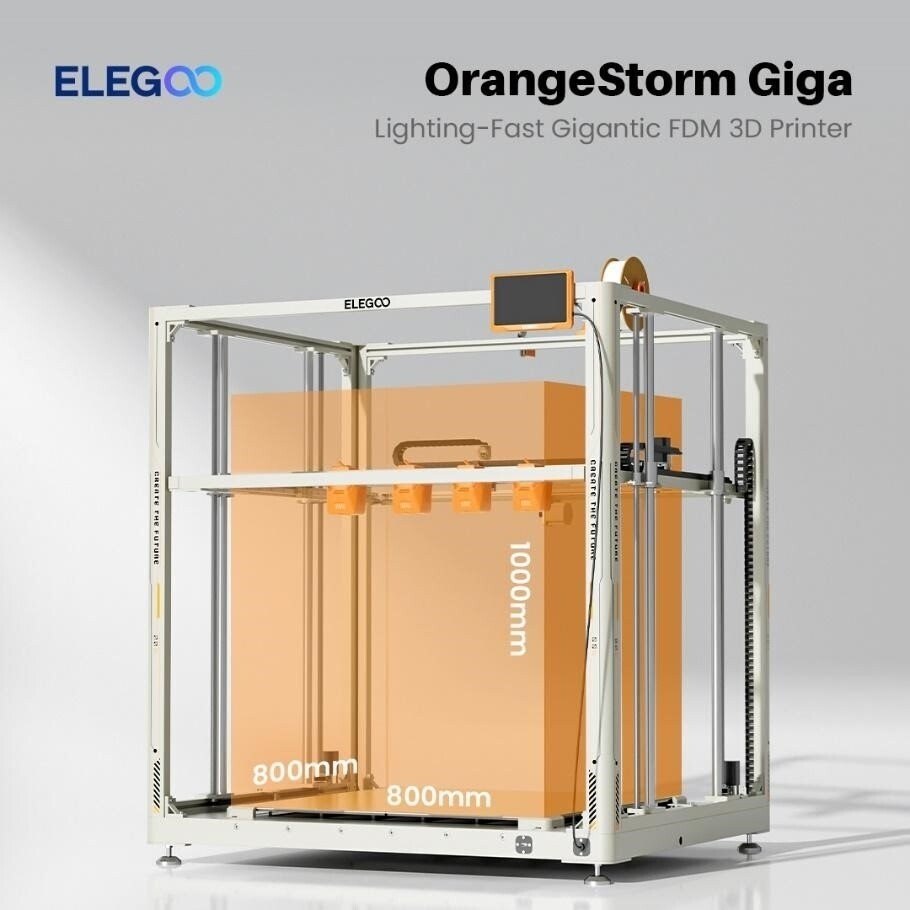

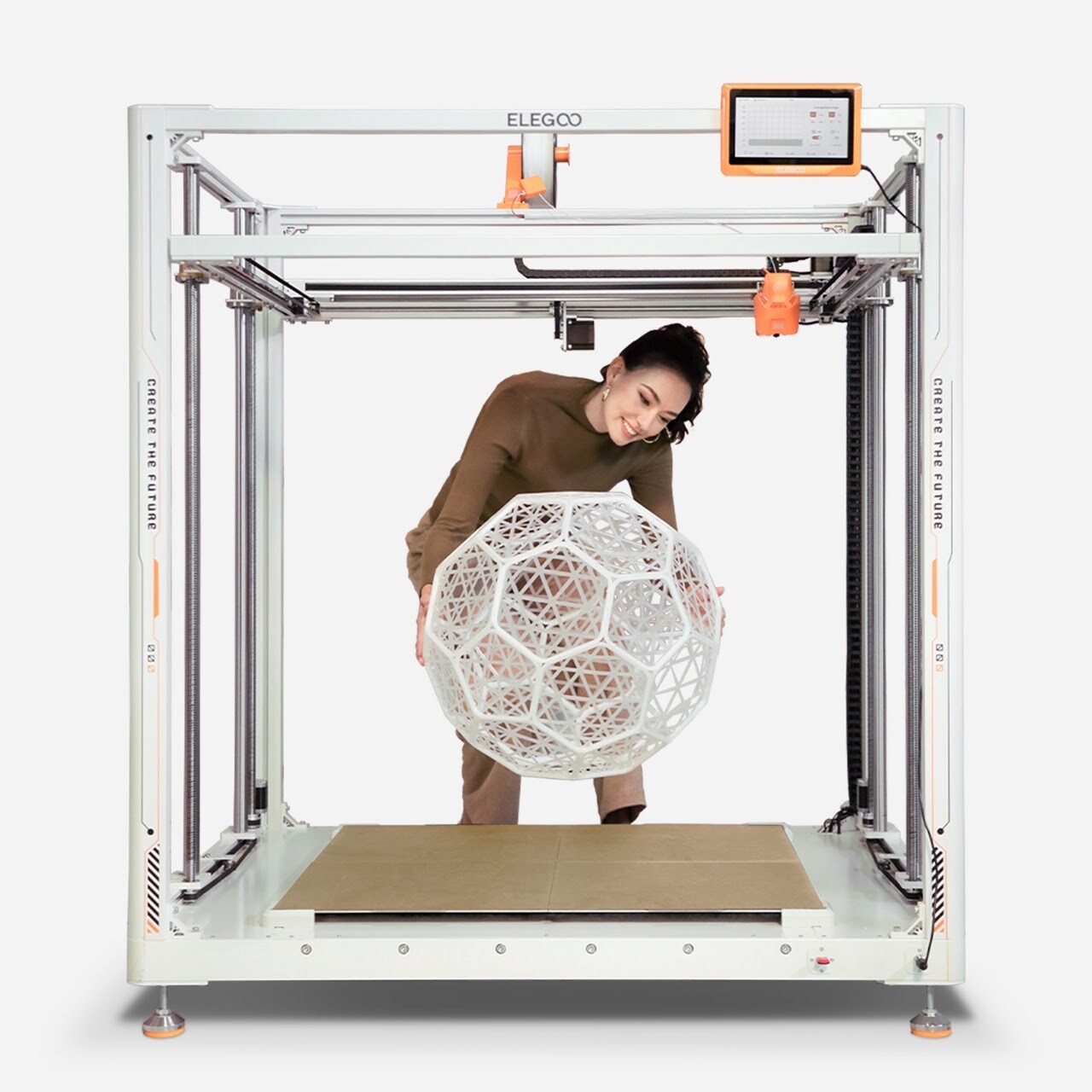

With a build volume of 800mm x 800mm x 1000mm, the industrial-grade FDM printer not only meets the user's printing needs for oversized models, but also reduces the need to cut models into smaller sections for efficient printing.

2. Efficient Heated Bed

The heated bed consists of four independent (410*410mm) PEI magnetic high-temperature platforms with a maximum temperature of 90°C. The four platforms can be heated simultaneously to reach 90°C over the entire area in 17 minutes (Ambient temperature: 25℃). The platform where the model is located can also be automatically recognized and heated independently, or manually and independently controlled for increased energy efficiency.

3. Fast Printing

Utilizing a 64-bit 1.5G clock speed quad-core high-performance processor (SOC RK3328), it provides sufficient computing capacity while delivering 6 times the printing speed, with a maximum speed of 300mm/s (150mm/s recommended), which is the top end print speed for printers of its size.

4. Multi-Nozzle Printing

Three additional printheads can be added to the X-axis to realize simultaneous printing with four nozzles, supporting printing four of the same model, while each nozzle can be equipped with the same material and different color filament to achieve four different colored models of the same kind. (Each Giga machine comes with ONE printhead by default, you can also get more printheads from the Add-on part to achieve multi-nozzle printing.)

5. Powerful Cooling Fan

Thickened double-sided cooling fans can comprehensively enhance the model printing results. In addition, the fans are equipped with an intelligent control function that stops working when printing is complete, which saves energy and reduces noise as well as prolongs the lifespan. (5015 ball blower fan*2, 4010 ball axial fan*1)

1. High-Quality Craftsmanship

Integrated body, elegant yet durable. The X-axis and Y-axis are linear guides, effectively improving printing stability and increasing lifespan. The Z-axis features an upgraded version of the Z-Axis rod to make the machine run smoothly and ensure leveling precision. Machine mounts are designed with a carbon steel round base and rubber round anti-slip pad bottom.

2. Upgraded Nozzle

The upgraded 300℃ high-temperature nozzle adopts a proximal double-gear extrusion structure and full titanium alloy heat pipe. Plus, the nozzle is upgraded to chrome zirconium copper with a 60W ceramic heating pad for smoother and more uniform extrusion, which improves the printing precision.
In addition, the nozzle PID auto-calibration function provides more precise control of the nozzle temperature and the built-in acceleration sensor automatically calibrates resonance compensation parameters to further ensure print quality and enhance your printing experience.
Nozzle Diameter(included): 0.6mm
Nozzle Diameter(optional): 0.4mm/ 0.8mm/ 1mm

3. Caterpillar Cable Tracks

The cables on the body are stored in caterpillar cable tracks, which prevents the cables from being worn or broken and you don’t have to worry about them affecting your prints. Furthermore, it prevents dust and other debris from entering the cables, ensuring the stability and reliability of the entire system.

1. Portable 7-inch HD Capacitive Screen

The 7-inch HD capacitive screen can be detached from the body for handheld operation while supporting ELEGOO Cura model preview and switching between eight languages.

2. Filament Detection and Power Loss Recovery

No more worrying about being interrupted while printing. When there is a broken filament or no filament, the machine automatically sounds an alarm and pauses printing. Whether it's broken filament, no filament, power outage, or a manual pause in printing, you can resume printing again.

3. User-friendly Belt Nob

The X/Y axis belt is used to transmit the power of the motor and control the movement of the print head on the plane. The knob design here can easily and accurately control the tightness of the belt to obtain the best printing effect.

4. Large Spool Holder

Crafted from high-quality sheet metal, our spool holder can accommodate filament spools up to 5kg with ease. Its compact and sturdy design ensures that your large-scale printing projects receive reliable and consistent support throughout the printing process.

5. Auto-Leveling

Adopting one-click automatic leveling and a non-contact high-precision sensor to automatically collect 121-point (11*11) of platform data to ensure the platform is level.

Hardware Specification

Build Volume: 800mm*800mm*1000mm

Platform Dimensions: 820mm*820mm (4 pieces of 410mm splicing)

Nozzle Maximum Temperature: 300℃

Hot Bed Maximum Temperature: 90℃ (ambient temperature 25℃)

Machine Power: 1800W (to be determined)

Rated Voltage: 100-120V/220-240V; 50/60HZ

Equipment Dimensions: 1214mm*1050mm*1377mm

Packaging Dimensions: to be determined

Net Weight: 76.5KG

Gross Weight: 90KG

Printing Parameter

Screen: Full-color 7-inch HD capacitive screen

Motherboard: ARM64-bit quad-core high-speed silent motherboard

Firmware Type: Klipper

Connection Method: USB, LAN, WIFI

Slicing Software: ELEGOO Cura, Cura

Supported File Formats: STL, OBJ

Printing File Format: Gcode

Printing Specification

Standard Nozzle Diameter: 0.6mm

Nozzle Quantity: 1 (expandable to 4)

Printing Accuracy: ±0.1mm

Layer Thickness: 0.1-0.5mm (recommended 0.3mm)

Printing Speed: 30-300mm/s (default 150mm/s)

Extruder Type: Dual-gear proximal extruder

Extrusion Reduction Ratio: 5.2

Printing Material: PLA/ABS/TPU/Nylon

Consumable Diameter: 1.75mm

Leveling Method: Automatic leveling

Number of Leveling Points: 121

Ambient Temperature: 5-40℃

Package List
